Atlantic Technology™
FS Compact Powered Subwoofer
FS Compact Powered Subwoofer
Couldn't load pickup availability
**Atlantic Technology products currently ship to the United States only**

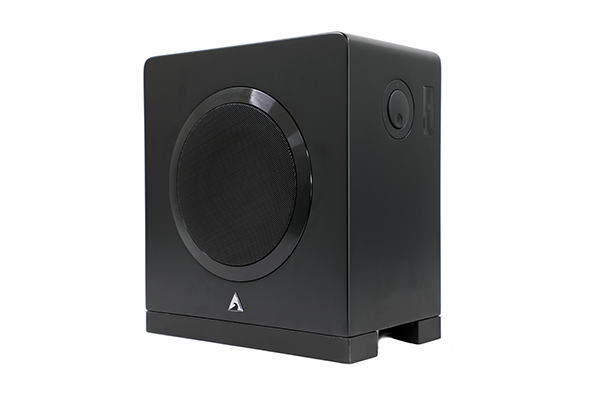

The FS Series are compact wireless subwoofers with the versatility of wired and wireless capability. It uses advanced SKAA wireless audio technology featured in a growing number of compatible Atlantic Technology products such as the award-winning FS-252 active multi-room SKAA bookshelf speakers or the STA-200, SKAA multi-room integrated amp. Now you can easily add deep bass in a stealthy design with the placement versatility of wireless and the legendary home-theater sound of Atlantic Technology.
Features
- SKAA wireless for long-range interference-free reception and simple flexible placement

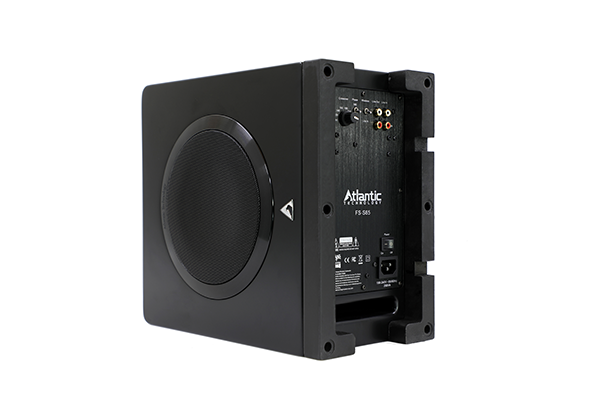

- Stereo inputs and outputs for wired connectivity versatility
- High-efficiency proprietary 150-watt amplifier
- Full subwoofer optimization controls
- Long-throw 6.5/8-inch four-layer-voice-coil driver for deep bass to 27 Hz
- Compact 7-inch thin cabinet for flexible placement even under furniture
Advanced Driver: The long-throw composite cone bass driver uses a vented motor structure and a high temperature, 4-layer aluminum voice coil. This powerful driver design has a very stiff composite cone that acts like a piston through its operating range. Its massive magnetic motor assembly and high-temperature component parts deliver exceptional performance and reliability.
Sophisticated Cabinet Design: The sturdy MDF enclosure delivers low distortion and extended deep bass output in a compact design, only 7-inches deep and finished in an all satin-black finish. This allows for maximum inconspicuous placement versatility positioned vertically or horizontally under furniture. As with all Atlantic Technology subwoofers, we have paid close attention to providing accurate musical bass reproduction along with terrific special effects.
Powerful Proprietary Amp: The high-efficiency 100-watt amplifier is capable of very high current delivery for exceptional driver control and the digital design ensures cool operation. Each amplifier is precision-matched and equalized to its specific driver resulting in powerful, controlled bass with great articulation and authority.

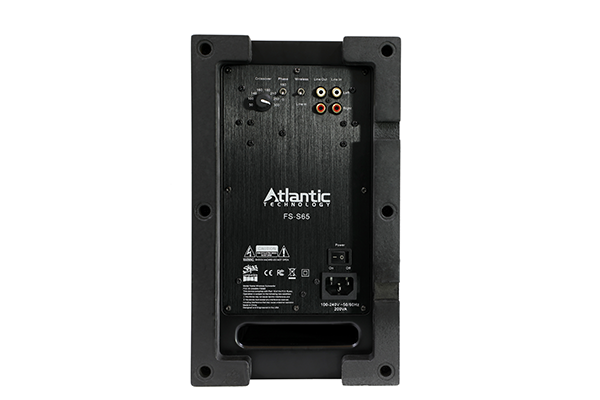

Versatile Optimization Controls: The adjustable (50Hz to 300Hz) @ 12dB per octave low-pass crossover delivers good blending with satellite speakers or a soundbar while making the woofer less localizable. The level control matches subwoofer output volume to the rest of the system and a Phase switch (0°/180°) is included for better acoustic matching with satellite speaker systems. Finally, Automatic Standby Operation features signal sensing turn-on with an automatic 20-minute turn-off delay that makes for convenient use.
Specifications
| Model | FS-S65 | FS-S8 |
|---|---|---|
| Bass Driver | 6.5-inch long-throw composite cone | 8-inch long-throw composite cone |
| Output Power | 100W RMS | 150W RMS |
| Amp Distortion | <0.5% | <0.5% |
| Frequency Response | 27 Hz – 300 Hz ±3 dB | 27 Hz – 300 Hz ±3 dB |
| Low Level Line-In | 20k Ohms | 20k Ohms |
| Peak Output (2500 cu. ft.) | 98 dB SLP | 100 dB SLP |
| Dimensions | 11.8 x 12.8 x 7.1 inch 300 x 325 x 180 mm |
13.8 x 23.6 x 7.1 inch 350 x 600 x 180 mm |
| Weight | 20 lbs / 9 kg | 22 lbs / 9.9 kg |
| AC Power Compatibility | 110VAC 50/60 Hz & 240VAC 50/60 Hz |
